Description

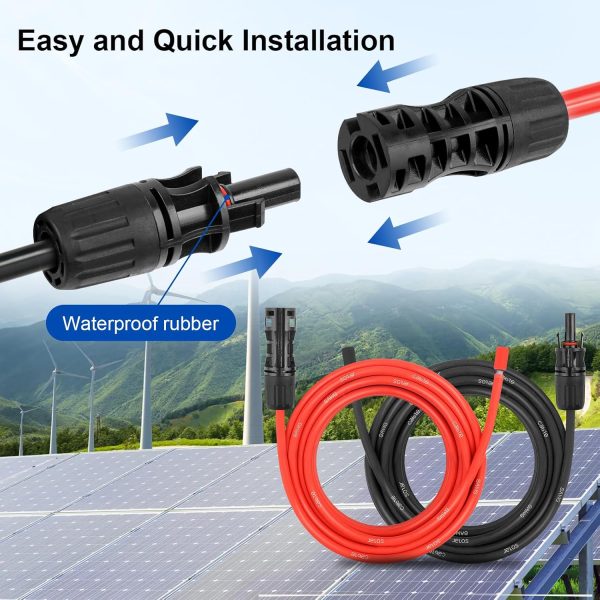

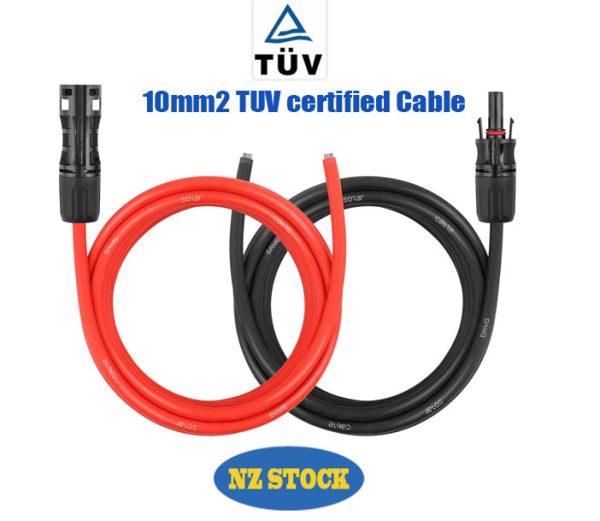

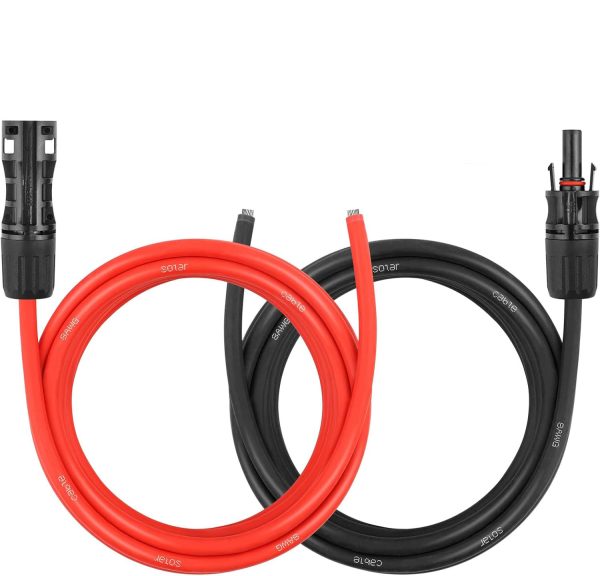

Solar Cable, Solar Extension Cable 10mm²

Size available: 10m/20m (For other sizes, pls contact us)

Main Features:
One pair ( 1 piece black + 1 piece red ) 10mm2 solar extension cable. Made with copper.
The wiring is weatherproof and designed to withstand extreme heat and cold.
The length of cable could be customized, free to contact with us!

Specification:

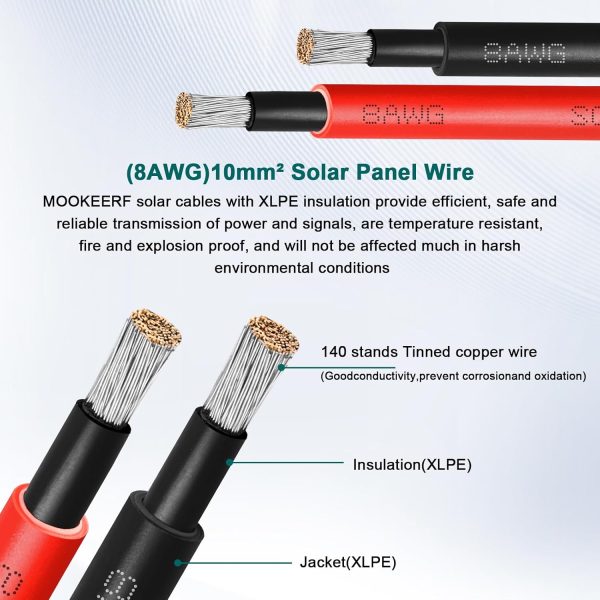

-Conductor: Stranded, tinned copper,
-Inner insulation: XLPE
-Outer jacket: PVC

Technical specification:
-Nominal voltage: 600/1000V AC

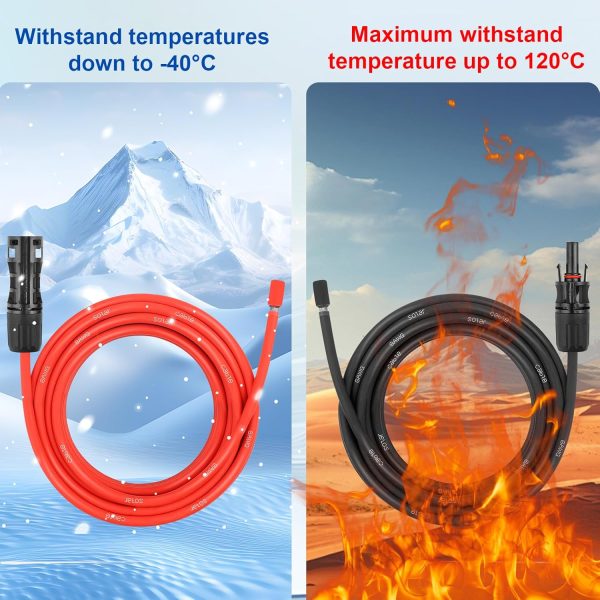

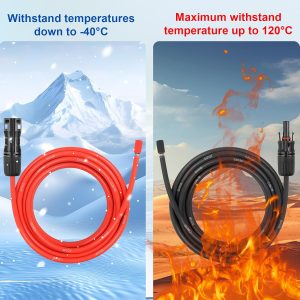

-Temperature rating: -40°C – 120°C wet or dry,
-Ambient temperature :> 25 years (TUV) (-40°C) – (+120°C)

Material propertied/standards:
1,Fire performance: IEC 60332-1
2,Smoke emission: IEC 61034; EN 50268-2
3,Low fire load: DIN 51900
4,Approvals: TUV & UL

Additional information

Weight 2.99 kg
Size

10M, 20m
