Solar Connectors Y Branch Parallel Adapter Cable 1 to 3


Solar Connectors Y Branch Parallel Adapter Cable 1 to 3 Solar Cable Wire Plug Tool Kit for Solar Panel (M/FFF and F/MMM)

Availability: In stock SKU: SLLARACC8275 Category:
View cart


One Pair Y Type 1 to 3 Branch Connectors Solar Panel Cable Connector Y Shape Male Female M/FFF & F/MMM Solar Extension Cable PV Wire Adapter

Main Features:

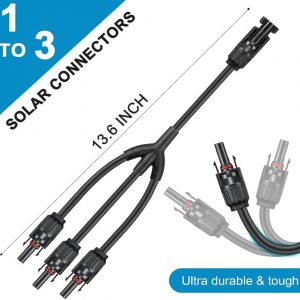

One pair of Y3-1 type male-female solar cable connector, one female to triple male (F/M/M/M) and one male to triple female (M/F/F/F), suitable for solar power station, PV cable, and PV junction box
The connector has high resistance against UV, and it is anti-aging, water, and dustproof
The 3 branches Y type solar extension cable adopts the crimp connection terminal, with good abrasion resistance, excellent softness, convenient installation, and strong commonality
Y type 3 branch cable connectors for convenient use. Male and female connectors have a stable self-locking system, and it’s easy to insert and withdraw. Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
Good load capability with big current and high voltage. Resistance of extra high and low temperature and fireproof

Insulation material: PPO

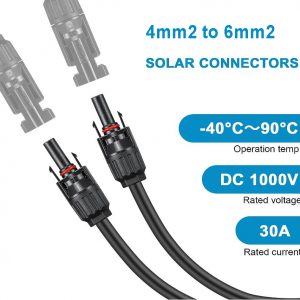

Rated current: 30A
Rated voltage:1000V(TUV)&600V(UL)
Test voltage:6kV(50Hz,min)
Typical contact resistance: ≤5m
Contact material: Copper, Tin plated

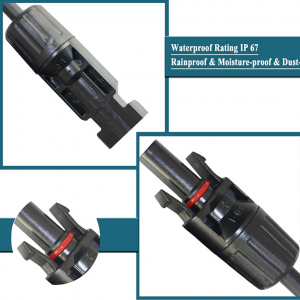

Degree of protection: IP67
Ambient temperature range:-40℃ until+90℃
Wire Size: 4mm²

Package Includes:
1 x MC4 Y Branch Type Solar Panel Connector for Photovoltaic System (3 to 1)

Additional information

Weight 3.1 kg
