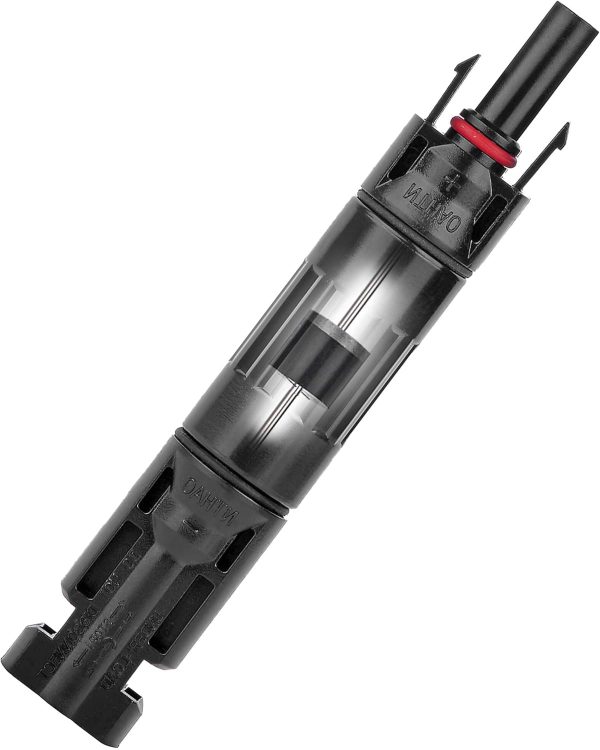

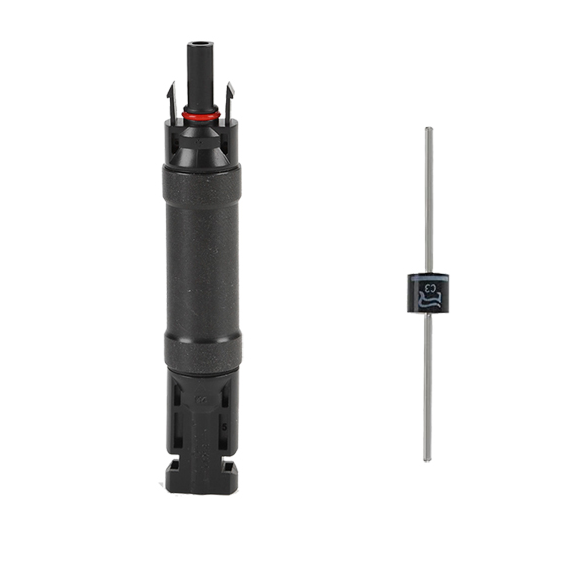

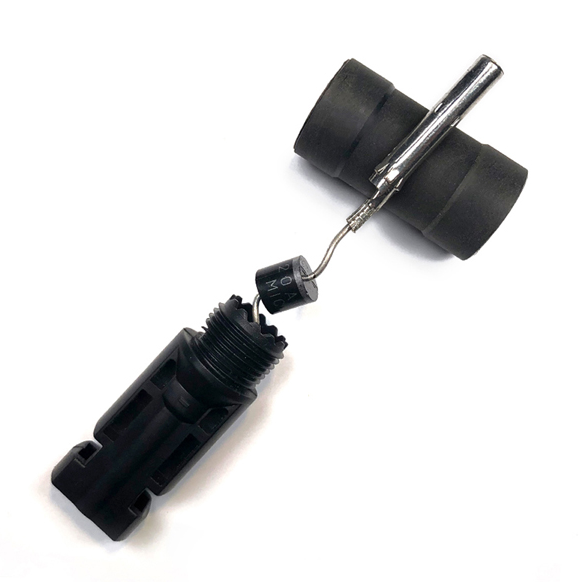

Solar Panel Diode ， PV Cable Connector Built in Diode Anti-backflow
$9.99
20A Solar Diode Connector PV Bypass Diode Photovoltaic Connection，Photovoltaic connector: solar photovoltaic connector with protection function
- Description
- Additional information
- Reviews (0)
Description
—– In stock in New Zealand for immediate dispatch —–
We are a trustworthy company that has been in business for 11 years.
Solar Diode Connector PV Bypass Diode Photovoltaic Connection，Photovoltaic connector: solar photovoltaic connector with protection function
Description:
The Solar Diode rectifier circuit only allows current to pass in a single direction, and blocks it when reversed to avoid reverse current from burning out the photovoltaic panels.
Specification:

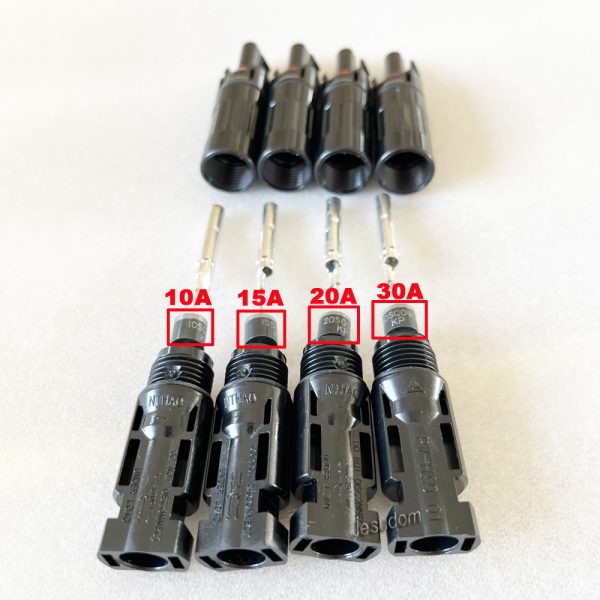

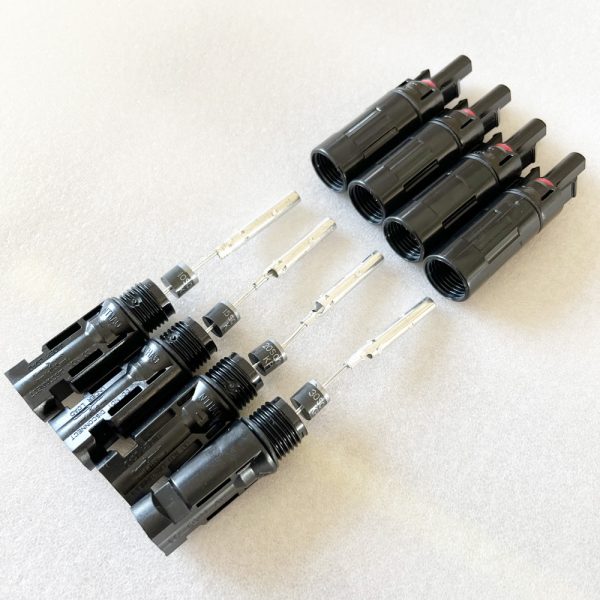

-Model: 10A, 15A, 20A, 30A (optional)
-Color:Black

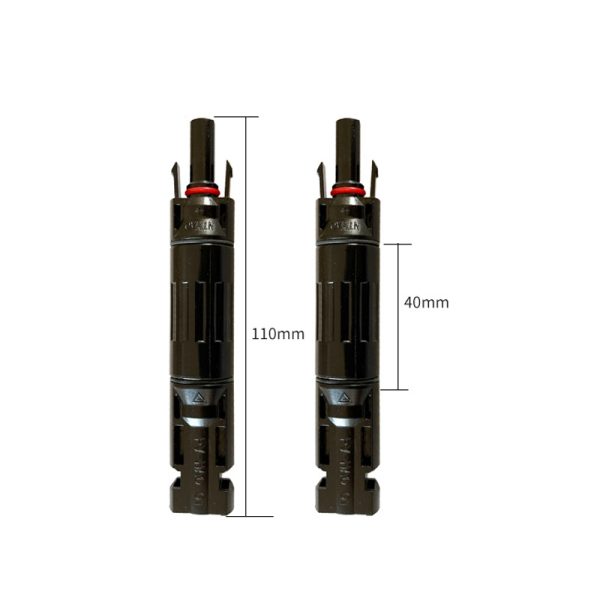

-Size:9.8*1.9cm
-Made of high-quality materials,

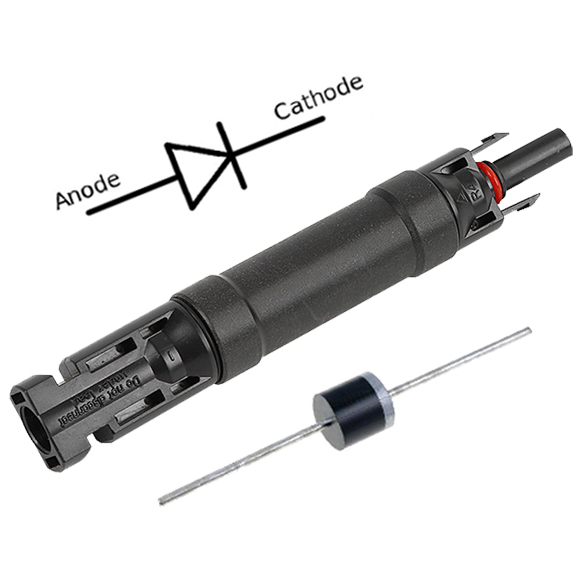

-The blocking diode acts like a -way valve, allowing only current to out of the solar module.

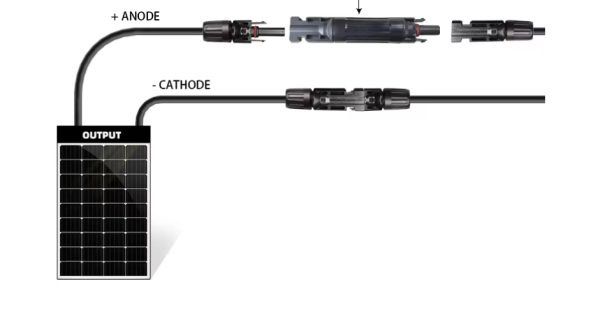

– end is male and the other is female.
-Type: Plug/Socket
-Rated voltage: 45V
-Rated impulse voltage: 1000V
-Protection class: IP67
-Operating temperature: -40°C ~ +90°C
-Contact resistance: ≤5mΩ
-Insertion force: ≤50N / ≥50N
-Applicable cables: 10, 12, 14 for AWG (2.5mm2/4mm2/6mm⊃2;),
-Interface Type: AC/DC
-Feature: Waterproof
-Contact material: tinned copper
-Insulation material: ppo
-Working frequency: low frequency
Package includes:
1 * Cable blocking diode waterproof connector
Additional information
| Weight | N/A |
|---|---|
| Size | 15A, 20A, 30A |
