Digital multimeter DC AC voltmeter

0 out of 5
( There are no reviews yet. )

Original price was: $36.00.Current price is: $25.00.

Digital Multimeter DC AC Volt Meter: 999 Counts Voltage Tester Ohmmeter Auto-Ranging Tester, Accurately Measures Voltage Current Resistance Diodes Continuity Duty-Cycle Capacitance Temperature

Availability: In stock SKU: PDRTYBT5155 Categories: ,
Add to wishlist

Description

Intelligent Multimeter with Multiple Functions:

It can measure AC/DC current, AC/DC voltage, resistance, capacitance, temperature, frequency, continuity and diode test, live wire detection, etc.

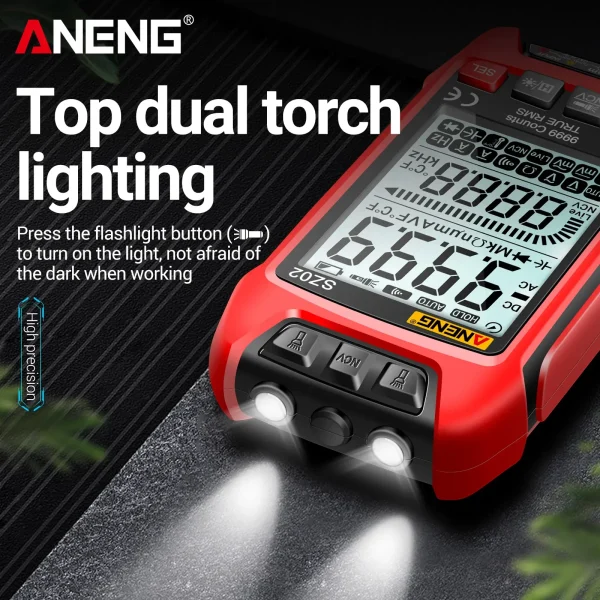

Dual Flashlights Design:

Two torches at the top for auxiliary lighting up the working area in low-lit or dark environments, not afraid of the dark when working, and it will automatically turn off after about 5 minutes.

NCV Non-contact Voltage Detection:

Place the NCV sensor closer to the measured cable, and the multimeter can detect whether the voltage is greater than 90V AC voltage. When the AC voltage is detected, the meter buzzer alarms, and the LCD analogue bar displays the induction intensity.



Safety Operation:

Built-in overload protection fuse, smart anti-burn. Meet the DC/AC 600V CAT III overvoltage standard, and double insulation protection(class II).

Large LCD Screen & Easy to Control:

Soft push buttons are easy to operate, and the large LCD screen with a bright backlight, convenient to check the measured data at a glance even in a dark environment.

Compact & Accurate:

As small as a mobile phone, convenient to use and carry around. Built-in with high-performance chip to ensure its accuracy.

Silicone Protective Case:

Protected with a soft silicone cover, you can use the meter in various conditions without worrying it falling down or scratching by hardware.

Specifications:
AC Voltage: 600mV-999.9V
DC Voltage: 600mV-999.9V
AC Current: 20mA~10A
DC Current: 20mA~10A
Resistance: 0Ω~99.99MΩ
Capacitance: 0nF~99.99mF
Hz: 0~1000Hz
Temperature: -40~1000 (-40~1832℉)
Diode: Yes
Buzzer: Yes
NCV Induction: Yes
Data Hold: Yes
Zero/Live Wire: Yes

Material: ABS
Display: LCD
Max. Display: 9999 digits
Range: Auto range
Sampling Time: About 3 times/second
Auto-off: 15 minutes
Working Altitude: Max. 2000 m
Operating Temperature: 0~40℃
Storage Temperature: -10~50℃
Power Supply: 2 * 1.5V AAA battery (NOT included)

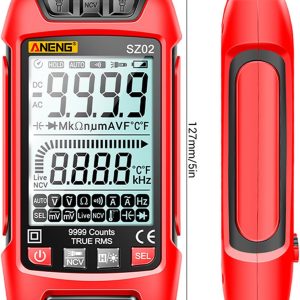

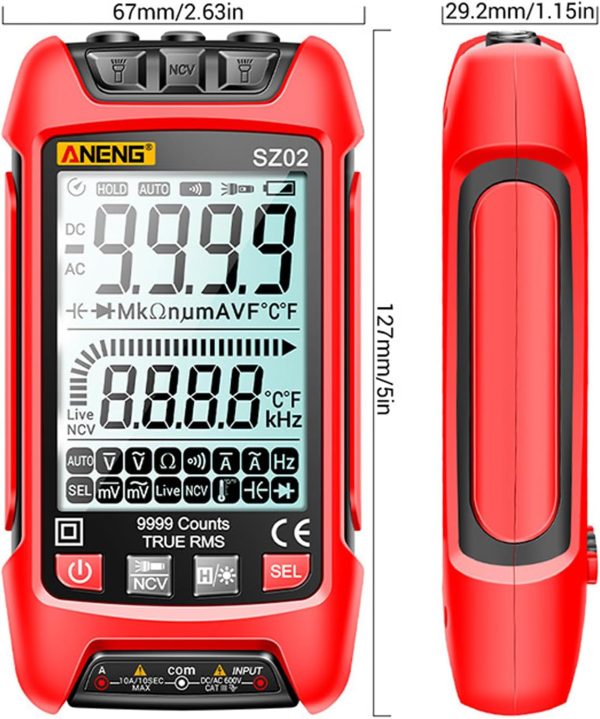

Item Size: 127 * 67 * 29.2mm
Item Weight: 131g
Package Weight: 242g
Package Size: 13.5 x 7.5 x 6.6 cm

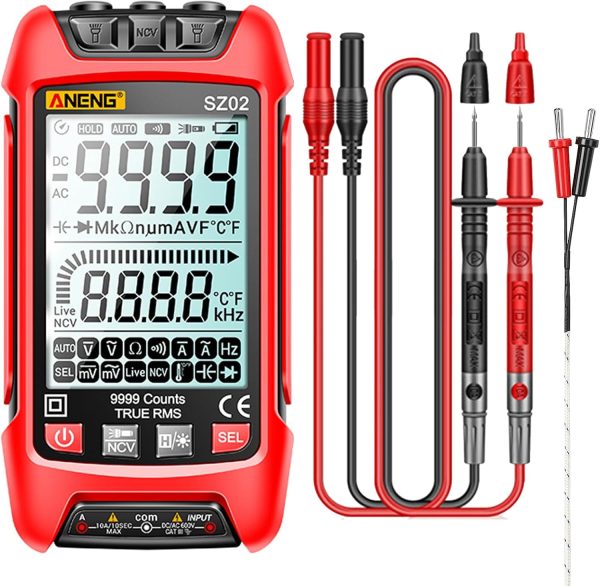

Package List:
1. Packing Box

2. Instruction Manual

3. Multimeter

4. Test Lead Line

5. Temperature Line
